Auto ​CRT Cutter is a E-waste recycling device. It cuts CRT into funnel and panel.

Chat Online on WhatsApp
Consultation

Auto Mechanical CRT Cutting Machine

  • Details

    Auto CRT Cutter is a E-waste recycling device. It cuts CRT into funnel and panel.

     Features

    · Quickly cuts CRT into funnel and panel

    · Physical cutting method ensures high cutting speed

    · Easy to operate, reduce labor intensity

    · Capacity up to 120 units per hour

    · Environmental friendly

     Composition

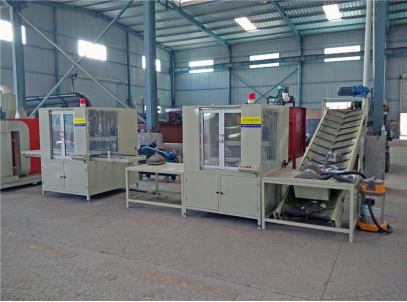

      CRT Auto Cutter consists of cutting device, dust collection equipment, out-feed belt conveyor, explosion-proof belt cutting table, glass recycling workbench components.

     Working Flow

    After removing steel belt/explosion-proof belt, operator places the CRT on the cutting table making the CRT center just facing the vacuum adsorption device, then start vacuum adsorption device to fasten the CRT, at the same time infrared is automatically open shooting to the CRT as a reference line for cutting, after that the operator will press height adjust button to slightly move up/down the CRT according to the infrared reference line. After all these done, start cutting process by press a button, a cutting wheel cuts the CRT as per the infrared line, 25 seconds later, funnel and panel are separated.

     Specifications

    Size

    4800*3100*2350mm

    Air Pressure

    0.6~0.8MPa

    Capacity

    100~120 units/h

    Power

    380V/8.05kw

    Operators

    3

    Applicable Items

    TV and computer:

    12~33 inch CRT

    Working Voltage

    AC380V+/-10% 50HZ

    Air compressor Model

    W-0.8/12.5-7.5KW-180L

    Phosphor Powder collector Model

    60L-1.8KW->17KPa
